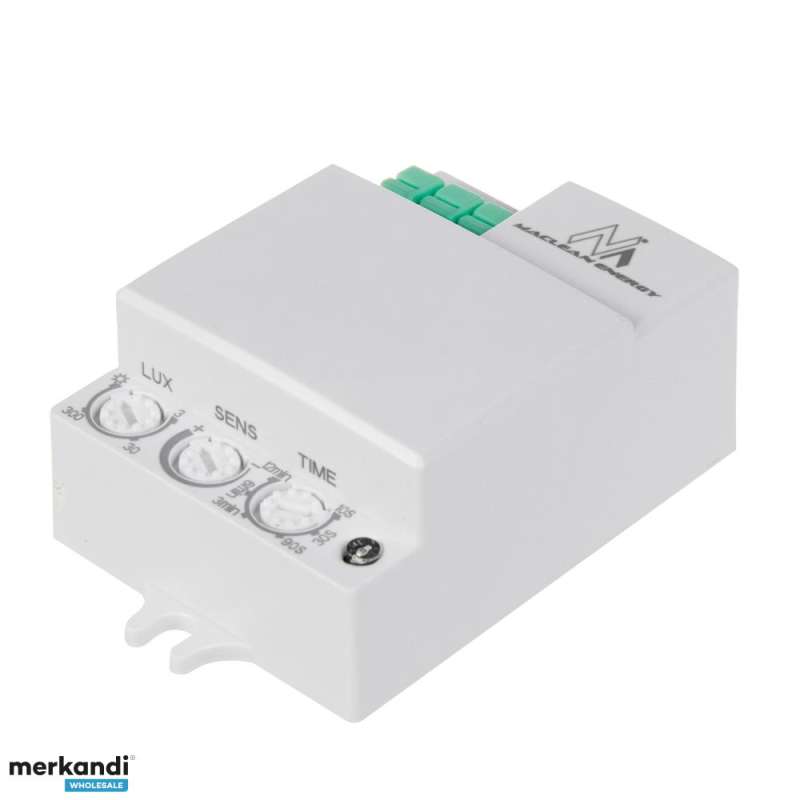

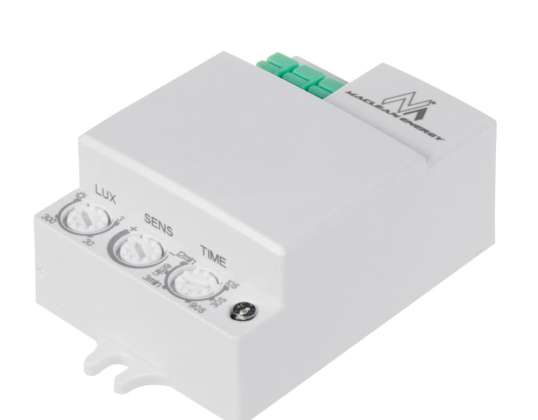

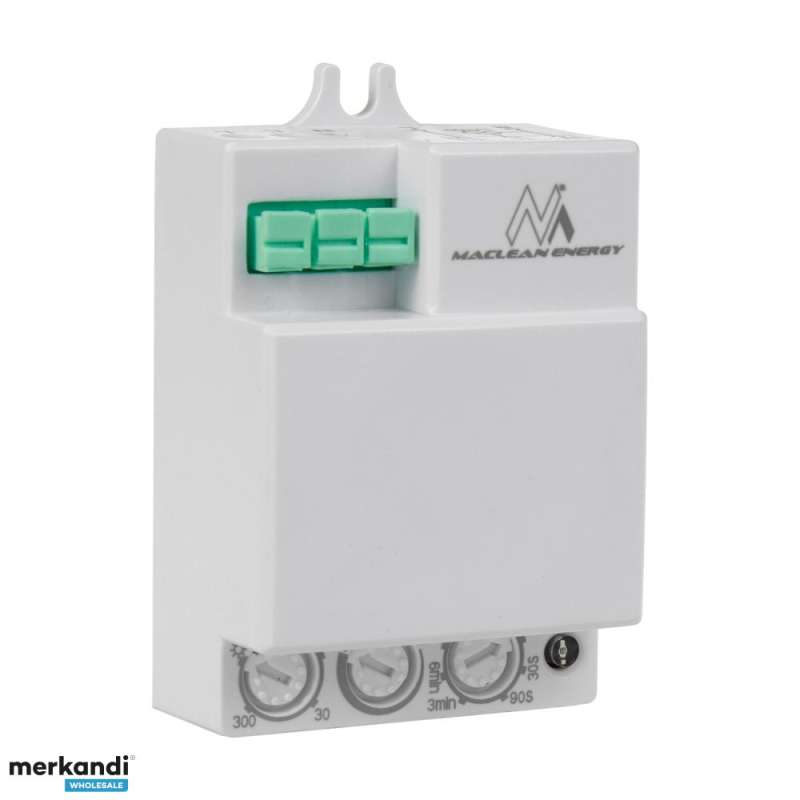

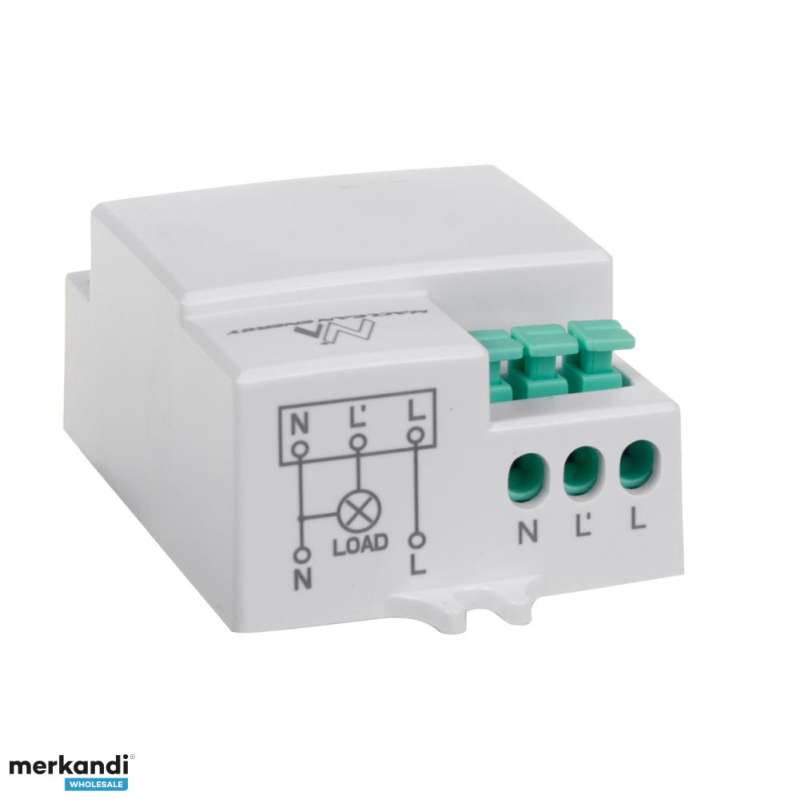

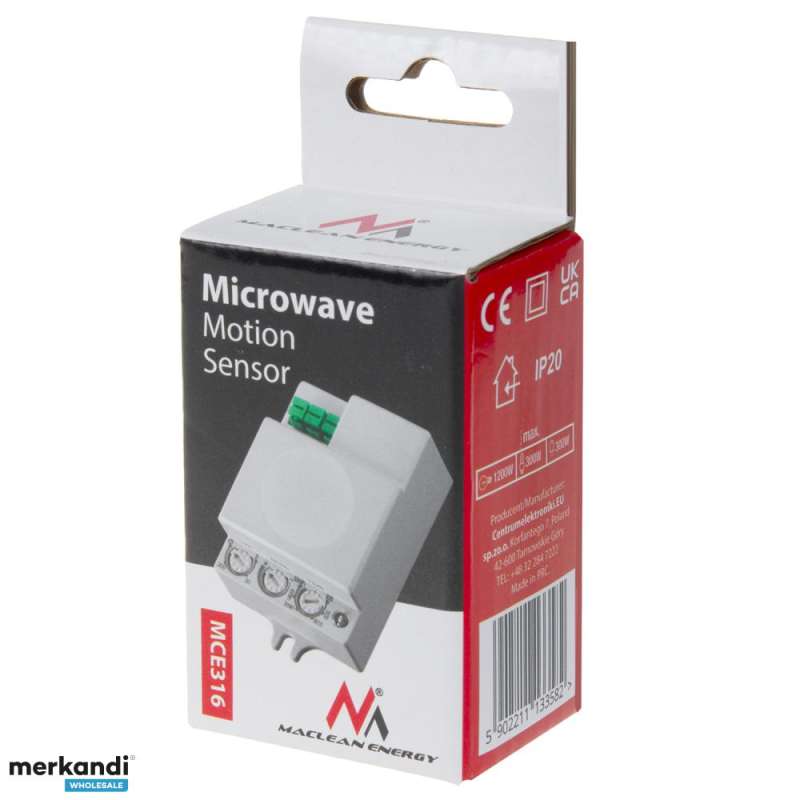

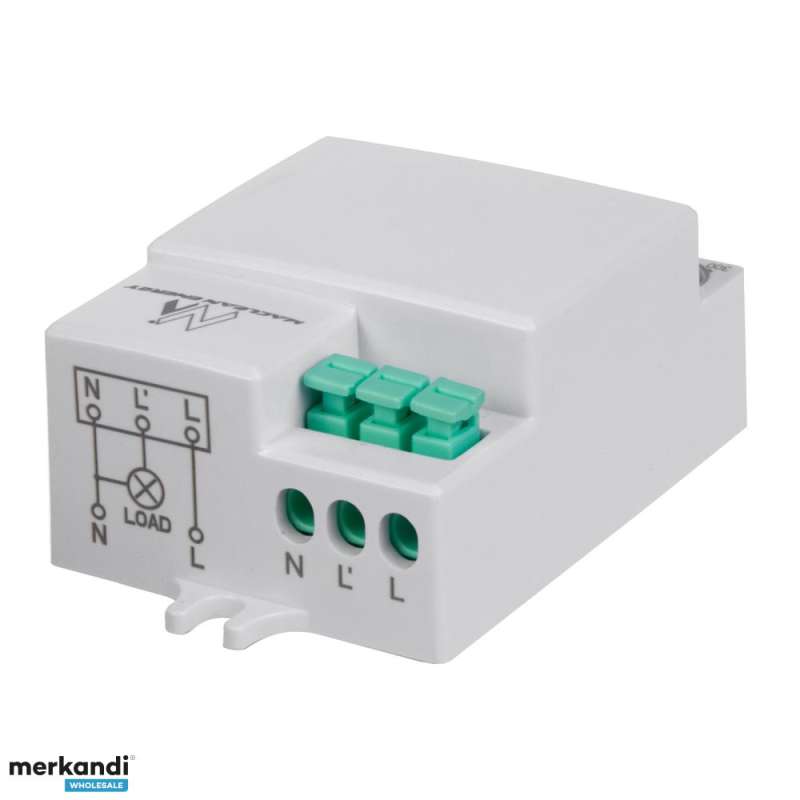

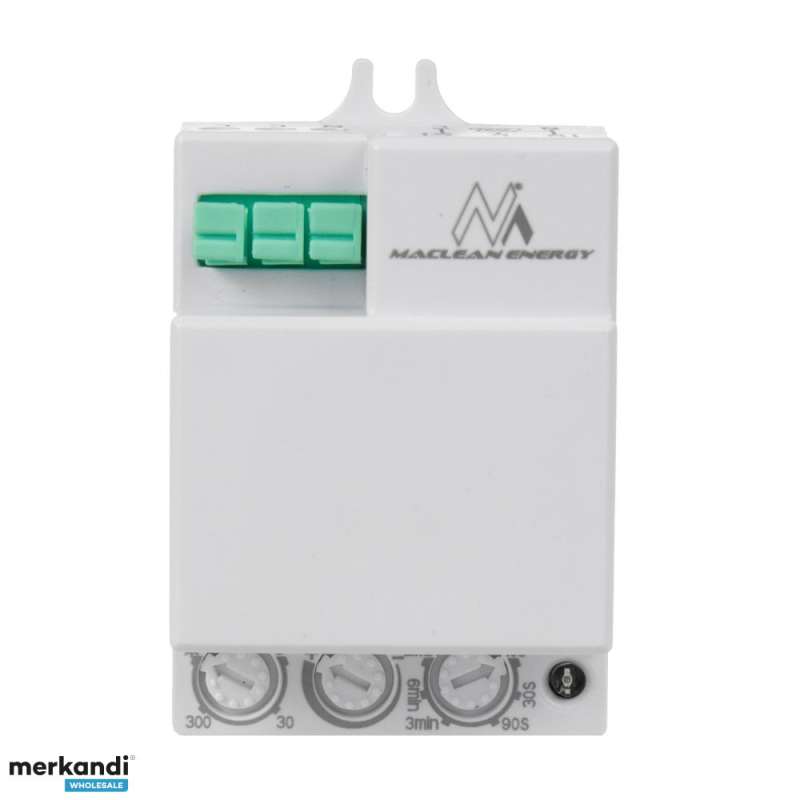

MCE316 is a combination of a microwave motion sensor and a twilight sensor. It serves for automatic control of lighting, which helps to save electricity consumption. Since all control elements are integrated in one housing, the device is very easy to install. The microwave sensor is characterized by high sensitivity, allowing detection of motion even through doors, panels, glass or thin walls. The TIME knob is used to adjust the lighting time (from approximately 10 seconds to 12 minutes). The LUX knob allows us to set the ambient light sensitivity (range from 3 to 2000 LUX). When the ambient light is insufficient and we want the device to work both day and night, we set the knob in the daytime position (sun icon). The SENS knob is used to adjust the sensitivity, which can be set depending on the location. The detection distance at low sensitivity can be 2 m, while high sensitivity can be up to 16 m, which suits large rooms. Specifications - Manufacturer: Maclean - Model: MCE316 - Color: white - Power voltage: 220-240 V/AC - Power frequency: 50/60 Hz - Light sensor: 3-2000LUX (adjustable) - HF system: Radar CW 5.8 GHz, ISM band - Time delay: min. 10s +/-3s, max. 12 min +/-1 min. - Maximum load: 1200W (incandescent lamps) 300W (energy-saving lamps) - Protection degree: IP20 - Detection range: horizontally 360° / vertically 180° - Detection distance (adjustable): wall 5-15 m, ceiling 1-8 m (radius) - Transmission power:
